Release date 21.06.2018

U1.S1 Install & Operation Manual

Model Overview

Introduction

The u1 epitomises cutting-edge design and innovation with its contoured tap and compact under-counter unit. This is our most discreet range and will fit into
any environment seamlessly.
The under-counter dispensers supplied

with this tap are manufactured with the most modern and innovative technologies. All the materials and
components are tested during the entire production process in order to satisfy all expectations.

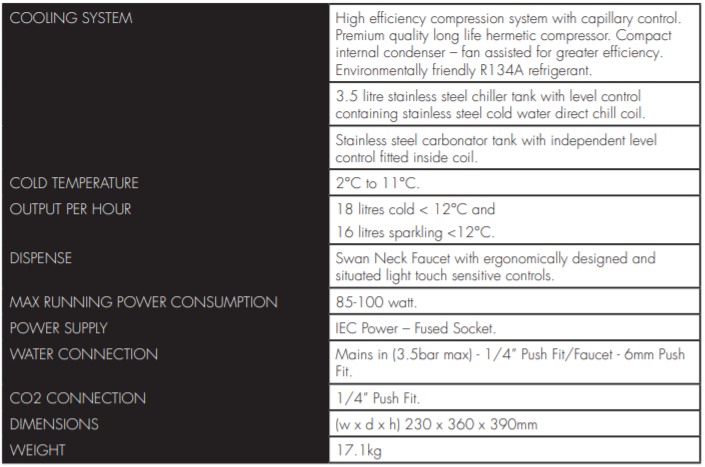

20-Litre:

Alongside a robust steel frame this dispenser features stylish, injection moulded front side and top panels.

COOLING SYSTEMHigh efficiency compression system with capillary control.
Environmentally friendly R134A
refrigerant.
COLD TEMPERATURE2°C to 11°C.
OUTPUT PER HOUR 18 litres cold < 12°C and 16 litres sparkling <12°C.
DISPENSE
Swan Neck Faucet with ergonomically designed and situated light touch sensitive controls.
MAXIMUM RUNNING POWER CONSUMPTION85-100 watt.
POWER SUPPLYIEC Power – Fused
Socket.
WATER CONNECTIONMains in (3.5bar max) - 1/4” Push Fit/Faucet - 6mm Push Fit.
C02 CONNECTION1/4” Push Fit.
DIMENSIONS(w x d x h) 230 x 360 x 390mm.
WEIGHT17.1Kg.
CUPBOARD VENTILATIONRecommended

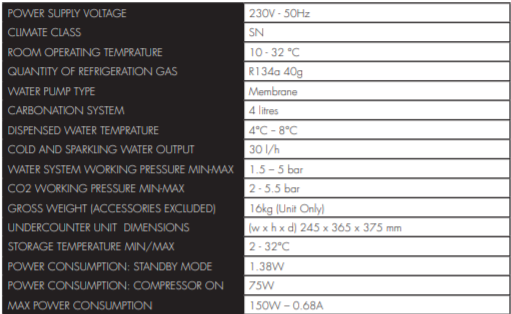

30-Litre:

With its low noise characteristics this unit can be installed in any environment where limited space is an issue. It is controlled by microprocessor which, via specially fitted sensors, will notify the user of any malfunctions and automatically turn off the dispenser when dangerous conditions arise. A separate monitoring system will also let the operator know when the water filter needs to be replaced.

COOLING SYSTEMHigh efficiency compression system with capillary control.
Environmentally friendly R134A
refrigerant.
COLD TEMPERATURE4°C to 8°C.
OUTPUT PER HOUR 30 litres cold & sparkling.
DISPENSE
Swan Neck Faucet with ergonomically designed and situated light touch sensitive controls.
MAXIMUM RUNNING POWER CONSUMPTION150 watt.
POWER SUPPLYIEC Power – Fused
Socket.
WATER CONNECTIONMains in (5bar max) - 3/4” Female BSP.
C02 CONNECTION1/4” Quick Fitting.
DIMENSIONS(w x d x h) 245 x 365 x 375mm.
WEIGHT16Kg.
CUPBOARD VENTILATIONRecommended

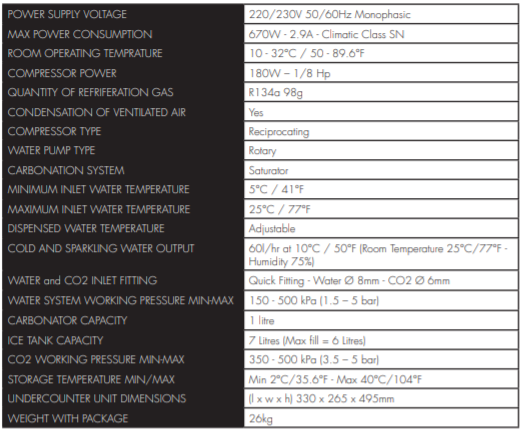

60-Litre:

Using “Ice Bank” technology this unit can dispense up to 60 litres of water per hour, completely satisfying the demand of small, medium and large restaurants and catering areas with high performance and a compact design.

COOLING SYSTEMHigh efficiency compression system with capillary control.
Environmentally friendly R134A
refrigerant.
COLD TEMPERATURE2°C to 11°C.
OUTPUT PER HOUR 60 litres cold & sparkling at 10°C.
DISPENSE
Swan Neck Faucet with ergonomically designed and situated light touch sensitive controls.
MAXIMUM RUNNING POWER CONSUMPTION360 watt.
POWER SUPPLYIEC Power – Fused
Socket.
WATER CONNECTIONMains in (5bar max) - 8mm Quik Fitting.
C02 CONNECTION6mm Quick Fitting.
DIMENSIONS(l x w x h) 269 x 467 x 510mm.
WEIGHT26Kg.
CUPBOARD VENTILATIONRecommended

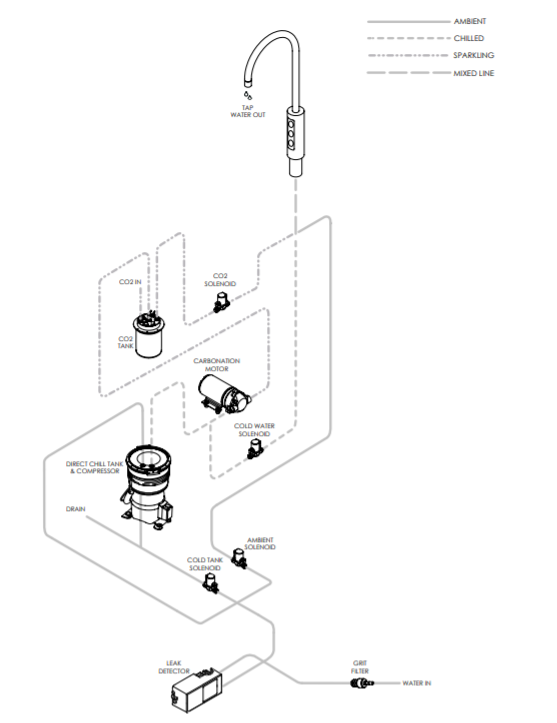

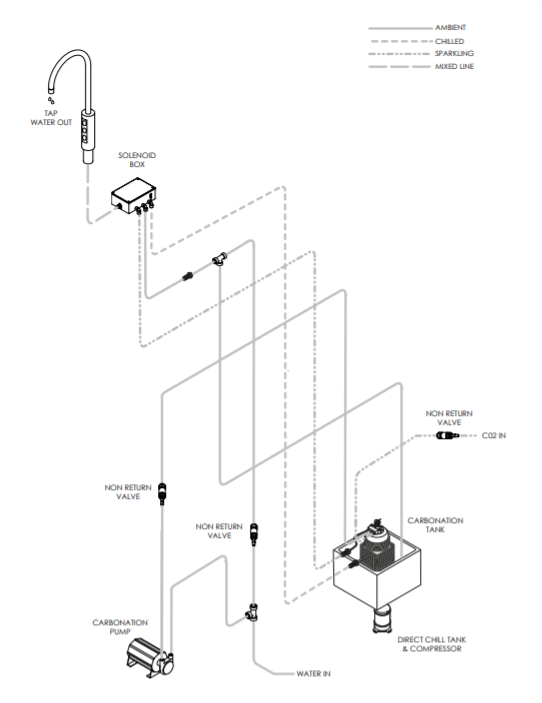

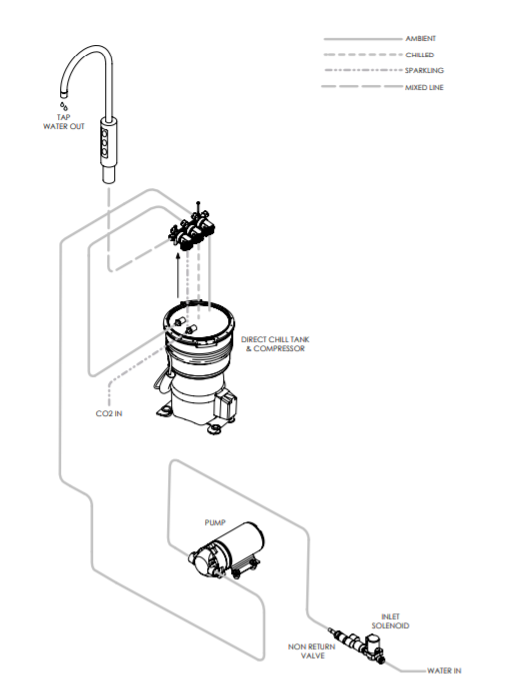

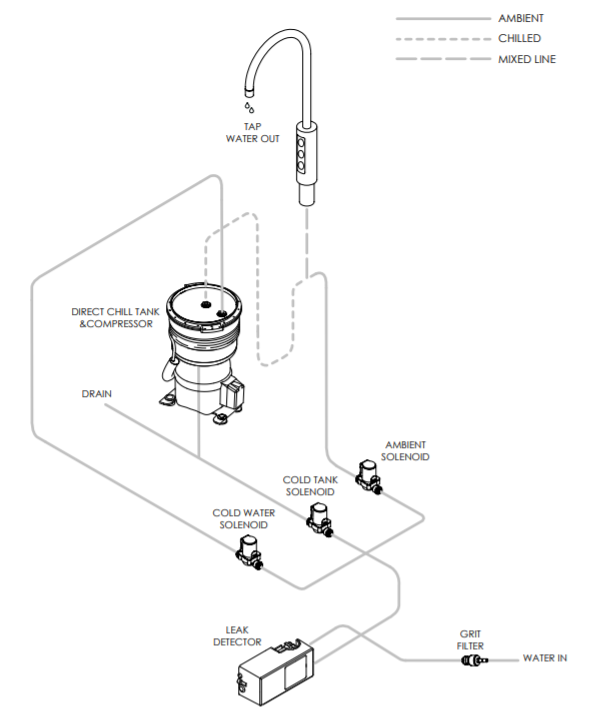

Component /Feature Overview

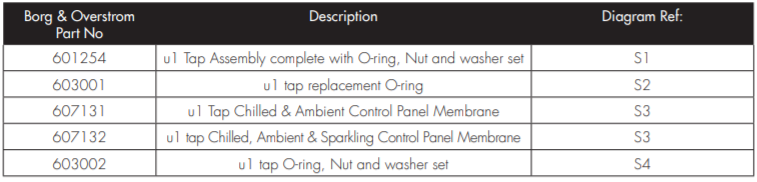

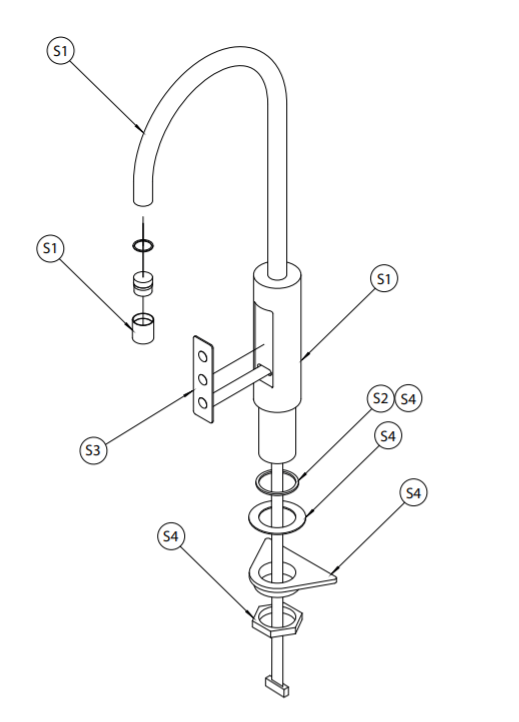

U1 Tap - Major Components

U1-Tap-Major-Components.svg

Please Note: Mains Installation Kit & Filters are supplied as extra items according to individual ordering requirement.

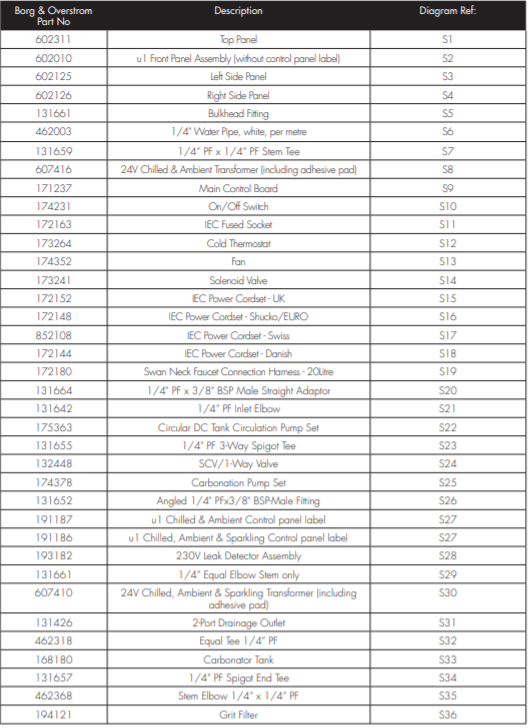

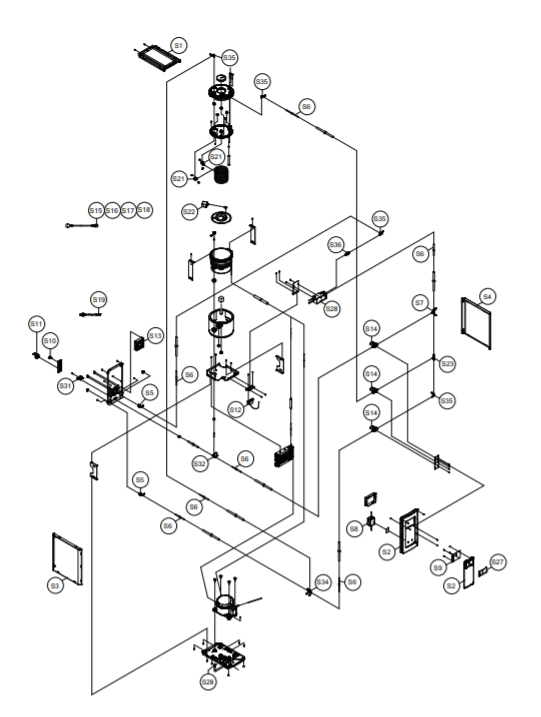

20-Litre - Major Components

20-Litre-Major-Components.svg

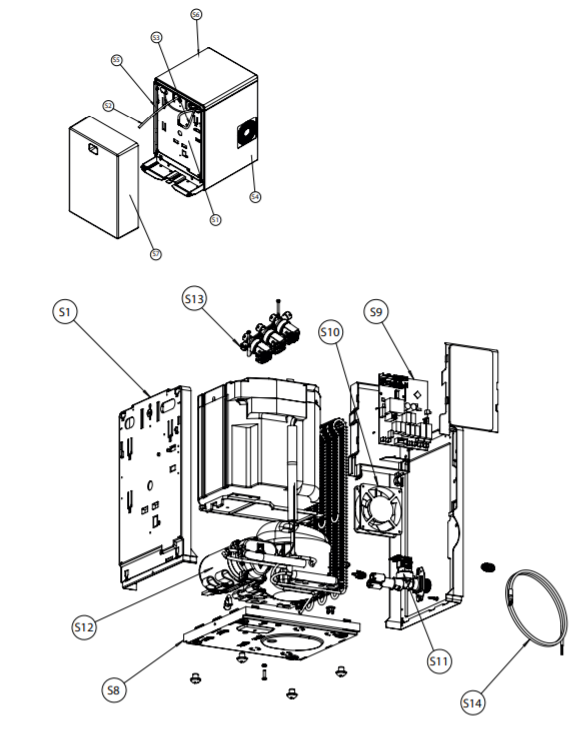

30-Litre - Major Components

30-Litre-Major-Components.svg

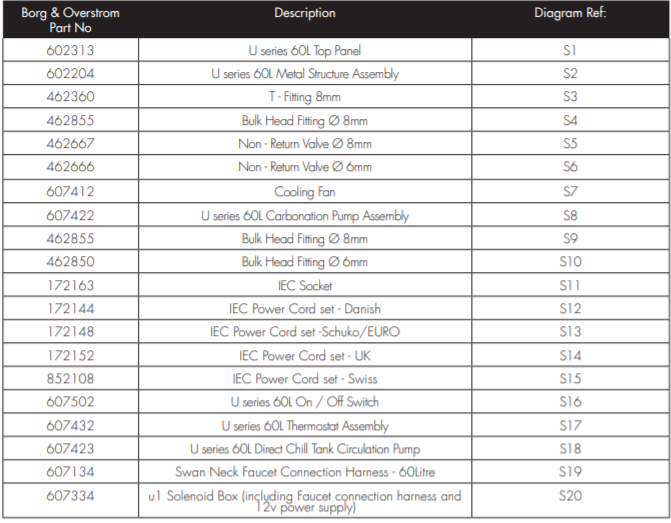

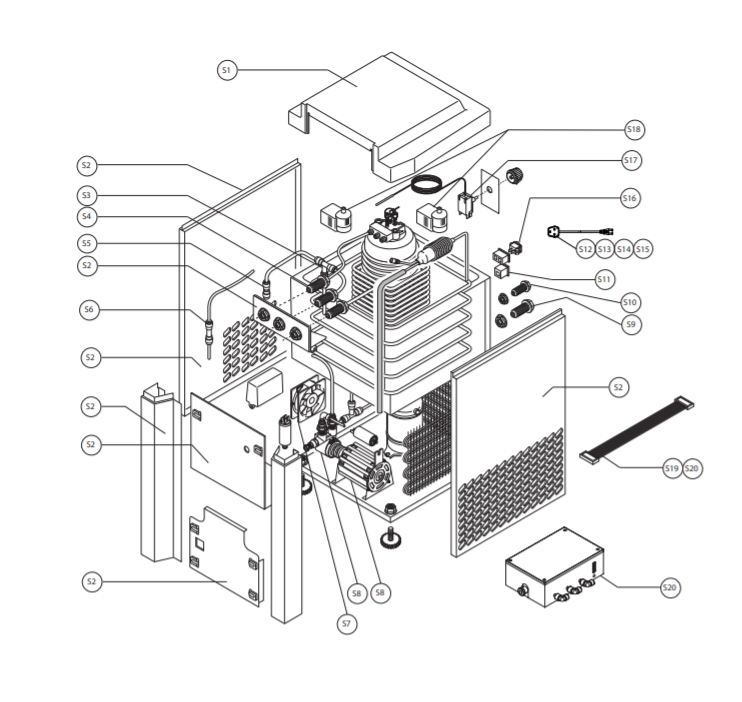

60-Litre - Major Components

60-Litre-Major-Components.svg

Installation

Tap Installation

1-and-2-Tap-Installation.svg
3-Tap-Installation.svg

When planning and providing for the connection to the
services, always allow for easily accessible service isolator fittings and for the position of an external water filter.

4-Tap-Installation.svg

Identify a suitable position for the swan neck faucet. A 33-35mm (max) hole is required.

5-Tap-Installation.svg

When positioning to drain over an existing sink bowl, allow for the reach of the swan neck or otherwise the position of any optional drip tray.

6-Tap-Installation.svg

Also allow for the height of the swan neck under any
overhanging cupboard/shelf.

7-Tap-Installation.svg

Allow for the space needed for forming the required hole. Relate the selected position to the underneath of the counter and check for any obstructions.

8-Tap-Installation.svg

Allow sufficient space for fitting a back nut to the faucet stem.

9-Tap-Installation.svg

Carefully form the needed hole using the correct type of cutter for the work surface material.
Observe all local occupational health and safety requirements.

10-Tap-Installation.svg

Remove the back nut and washer from the faucet and carefully feed the connecting pipe tail and ribbon cable through the hole formed in the work surface. Ensure the sealing O ring is prefitted in the base of the faucet. You may want to apply a thin bead of silicone sealant also.

11-Tap-Installation.svg

With the faucet control panel in the right position, carefully refit the back washer and nut. Take care not to over-tighten.

12-Tap-Installation.svg

Fit optional Drip Tray at this stage (if selected).

13-Tap-Installation.svg

Connect the Tap control panel membrane to the Faucet
connection harness.

14-Tap-Installation.svg

If applicable. Connect the Faucet connection harness to the harness connection Port.

20-Litre - Undercounter Unit Installation & Water Connection

1-20-Litre-Undercounter-Unit-Installation-Water-Connection.svg

Check the main components are present as per the Major Components Contents Diagrams

2-20-Litre-Undercounter-Unit-Installation-Water-Connection.svg

Position the unit in place, ensuring it is level and stable.

3-20-Litre-Undercounter-Unit-Installation-Water-Connection.svg

Connect to the water supply.

4-20-Litre-Undercounter-Unit-Installation-Water-Connection.svg

The maximum recommended inlet pressure is 3.5bar. We recommend fitting a check valve, a pressure reducing valve and a ‘Waterblock’ device. (These are available as part of our optional Installation Kit). When fitting a Waterblock device we recommend a minimum setting of ‘2’ be used.

5-20-Litre-Undercounter-Unit-Installation-Water-Connection.svg

Pre-flush and fit the filter in an accessible position.

6-20-Litre-Undercounter-Unit-Installation-Water-Connection.svg

Always allow adequate connecting pipe length
to enable the unit to be sufficiently moved for any future disconnection.

7-20-Litre-Undercounter-Unit-Installation-Water-Connection.svg

Connect the faucet connection harness to the unit.

8-20-Litre-Undercounter-Unit-Installation-Water-Connection.svg

Turn on the water supply and check for any leaks.

9-20-Litre-Undercounter-Unit-Installation-Water-Connection.svg

Connect the IEC power cordset to the electricity supply,
and switch on power.

10-20-Litre-Undercounter-Unit-Installation-Water-Connection.svg

The Direct Chill system should now be heard to begin filling. This may continue for a few minutes depending upon water pressure. (NB: Any immediate whining noise from the DC pump should soon stop as the water level in the system rises).

11-20-Litre-Undercounter-Unit-Installation-Water-Connection.svg

Upon completing the installation process, proceed
to flush out the dispense water lines using the buttons on the tap. We recommend that a minimum of 10lts is flushed through the unit. (Chilled approx.8lts and Ambient approx. 2lts).

12-20-Litre-Undercounter-Unit-Installation-Water-Connection.svg

Allow up to 1hr for the initial cooling cycle to complete.

30-Litre - Undercounter Installation & Water Connection

NOTE:

  • Any temporary water connections are detrimental to the correct functioning of this dispenser.
  • During installation only new water supply pipes must be used. The water supply line for this dispenser must consist of an interception valve (tap) and non-return valve.
  • For the correct and safe functioning of this dispenser, the water mains must satisfy the criteria detailed in the specification section of this manual (see Specification 30-Litre)
  • If mains water is greater than 3.5 bar, a pressure reducing valve (PRV) needs to be fitted to bring the pressure down to 3bar.

  • Fittings and pipes for connection to the water mains must be food certified. Optional accessories such as filters and pre-filters, to be assembled on the water mains after the interception valve, must also be certified for food compatibility.
  1. Check the main components are present as per the list in the Major Components Diagram
  2. Pre-flush and fit the filter in an accessible position.
  3. Position the unit in place, ensuring it is level and stable.
  4. Connect the water supply pipe to the fitting supplied in the install kit.
  5. Once connected to the mains, position a suitable container at the open end of the supply pipe and turn on the water to drain and clean the tube; clear the external filter and other outer accessories (if attached) by draining at least 2 litres of water. After this operation turn off the tap.
  6. Screw the 3/4” female BSP on to the threaded coupling used to connect the water supply pipe to the dispenser. Remember to insert the supplied gasket.
  7. Connect the open end of the tube to the 3/4” female BSP located on the dispenser (see Fig1).
  8. Turn on the tap making sure there are no leaks along the supply line (see Fig2).
  9. Always allow adequate connecting pipe length to enable the unit to be sufficiently moved for any future disconnection.
2-30-Litre-Undercounter-Unit-Installation-Water-Connection.svg

Fig 1

3-30-Litre-Undercounter-Unit-Installation-Water-Connection.svg

Fig 2

60-Litre - Undercounter Unit Installation & Water Connection

NOTE:

  • Any temporary water connections are detrimental to the correct functioning of this dispenser.
  • During installation only new water supply pipes must be used. The water supply line for this dispenser must consist of an interception valve (tap) and non-return
    valve.
  • For the correct and safe functioning of this dispenser, the water mains must satisfy the criteria detailed in the specification section of this manual (see Specification 60-Litre).
  • If the pressure of the water mains is greater than 3.5 bar, it will be necessary to install a pressure reducer after the interception valve, setting the pressure to 3 bar. Pressure peaks greater than 6.5 bar may cause the safety valve to open.

  • Fittings and pipes for connection to the water mains must be food certified.
    Optional accessories such as filters andpre-filters, to be assembled on the water mains after the interception valve, must also be certified for food compatibility.
  1. Check the main components are present as per the lists on the Major Components Diagrams
  2. Pre-flush and fit the filter in an accessible position.
  3. Position the unit in place, ensuring it is level and stable.
  4. Screw the non-return valve on to the shut off valve along with the pressure reducer if necessary.
  5. Use the 1/2” or 3/4” fitting to connect the water supply pipe provided with the install kit to the mains.
  6. Connect the water supply pipe to the water supply fitting.
  7. Once connected to the mains, position a suitable container at the open end of the supply pipe and open the shut off valve to drain and clean the tube; clear the external filter and other outer accessories (if attached) by draining at least 5 litres of water. After this operation close the shut off valve.
  8. Connect the free end of the pipe to the water inlet point on the dispenser (see Fig1).
  9. Open the shut off valve making sure there are no leaks along the supply line (see Fig 2).
  10. Remove the lid and fill the ice bath up to the fill markers. Once full ensure the lid is replaced (see Fig 3).
  11. Always allow adequate connecting pipe length to enable the unit to be sufficiently moved for any future disconnection.
2-60-Litre-Undercounter-Unit-Installation-Water-Connection.svg

Fig 1

3-60-Litre-Undercounter-Unit-Installation-Water-Connection.svg

Fig 2

4-60-Litre-Undercounter-Unit-Installation-Water-Connection.svg

Fig 3

Installing the Solenoid Box

  1. Mount the Solenoid Box on the underside of the work top that the u1 tap is fixed to using screws provided (Try and keep as close as possible to the u1 Tap).
  2. Connect all outlet dispense options from unit to corresponding inlets on the solenoid box.
  3. Connect u1 tap pipe work to outlet of solenoid box.

Note: Please make sure electrical power is turned off: Connect power to inlet of transformer that is fixed at rear of unit. Connect lead from outlet of transformer to solenoid box.

4. Connect u1 membrane to solenoid box.
5. Turn on power supply and set up is now complete.

30/60-Litre - Ventilation Grill Installation

When Borg & Overström u1 undercounter units are installed inside a cabinet or housing, adequate ventilation is recommended to ensure that they operate satisfactorily.
During a cooling cycle it is normal for the unit to produce heat and the purpose of the ventilation is to provide a supply of air that can absorb the generated heat which otherwise will accumulate inside the cabinet or housing and reduce the cooling performance of the unit. The amount of heat generated by the cooling cycle depends directly upon the amount of usage – the

higher the usage, the more heat produced.
To provide adequate ventilation we recommend that air grilles/vents are fitted as supplied (or vent apertures formed) in the cabinet to allow an airflow as shown below. Normally this should be enough for all situations.
The air grilles fitted (or vent apertures formed) should each have a ventilation area equal to or greater than 25000mm2 and the air circulation path inside the cabinet/housing must be unobstructed. (eg: a vent grille with an overall size of 250mm x 100mm).

It is recommended that an inlet vent grille is set into the plinth with a corresponding vent grille in the base of the cabinet behind the undercounter unit to allow the air to flow past the condenser. An exhaust vent grille is

also required at the top if the cabinet. It is recommended either behind the tap in the work surface or at the side of the cabinet for a more unobtrusive appearance should this area be available.

1-30-60-Litre-Ventilation-Grill-Installation.svg

Option 1 – Side View (Recommended air flow path from plinth to worktop).

2-30-60-Litre-Ventilation-Grill-Installation.svg

Option 1 – Front View (Recommended air flow path from plinth to worktop).

3-30-60-Litre-Ventilation-Grill-Installation.svg

Option 2 – Side View (Air flow from door or kick panel to worktop).

4-30-60-Litre-Ventilation-Grill-Installation.svg

Option 3 – Front View (Air flow from side of cabient to worktop or opposite side panel).

General Safety

General-Safety.svg

Operation

Functions & Controls

Functions-and-Controls

20-Litre Controls

20-Litre-Controls

20-Litre - Initial Cold Water Operation

1-20-Litre-Initial-Cold-Water-Operation

Turn on the water supply and check for any leaks.

2-20-Litre-Initial-Cold-Water-Operation

Connect the IEC power cord-set to the electricity supply, and switch on power.

3-20-Litre-Initial-Cold-Water-Operation

The Direct Chill system should now be heard to begin filling. This may continue for a few minutes depending upon water pressure. (NB: Any immediate whining noise from the DC pump should soon stop as the water level in the system rises).

4-20-Litre-Initial-Cold-Water-Operation

Upon completing the installation process, proceed to flush out the dispense water lines using the buttons on the tap. We recommend that a minimum of 10lts is flushed through the unit. (Cold approx.8lts and Ambient approx. 2lts).

5-20-Litre-Initial-Cold-Water-Operation

Allow up to 1hr for the initial cooling cycle to complete.

NOTE:
If model includes the sparkling dispense option please refer to CO2 Bottle Installation

Controls

30-Litre Controls

30-Litre-Controls

30-Litre - Initial Cold Water Operation

After carrying out the installation procedures detailed in the previous chapter, run the initial cold water operation as follows:
1. Ensure the CO2 bottle is properly connected to the dispenser (see Refillable C02 Bottle Installation).
2. Place a container with a capacity of 5 litres under the tap.
3. Dispense at least 3 litres of both ambient

and chilled water.
4. Hold the sparkling water button until sparkling water is dispensed.

30-Litre - Temperature Control

The cold water temperature control has 3 settings – 4c, 6c and 8c. The undercounter unit is factory set to 6c.
If any adjustment is required, please carry out the following steps:
1. Locate the button on the back top left of the unit (see Fig1).
2. Press and hold the button for approximately 3 seconds until you hear the signal beep, continue to hold whilst counting the number of bleeps. Use table below to set the temperature:

1 bleep 4°C
2 bleeps6°C
3 bleeps8°C

3. To change the setting: After carrying out steps 1 & 2, continue to hold the button on the back –
3a. To decrease the temperature,press the ambient dispense button 1x to reduce one stage or 2x to reduce two stages.

3b. To increase the temperature, press the cold dispense button 1x to raise one stage or 2x to raise two stages.

4. Release the programming button to save the selected setting.

5. Press and hold the programming button again and count the number of bleeps to confirm the setting is saved.

3-30-Litre-Temperature Control

Fig 1

4-30-Litre-Temperature Control

Fig 2

60-Litre Controls

60-Litre-Controls

60-Litre - Initial Cold Water Operation

After carrying out the installation procedures detailed in the previous chapter, run the initial cold water operation as follows:

1. Lift the upper plastic cover off of the dispenser by pulling it up.
2. If not done already, fill the ice tank with clean water paying special attention not to wet any of the electrical components.
3. Fill the ice tank to the arrow that indicates the maximum level (see Fig 1). After filling the tank do not move the dispenser as doing so could cause water to spill from the tank. NOTE: if this device is operated without water in the ice tank it will cause
serious damage to the machine.
4. Dry any drops or splashes caused by filling the ice tank.
5. Pull the ring of the safety valve on the carbonator, releasing gas for at least 2/3 seconds (see Fig 2).
6. Open the water shut off valve on the supply line.

7. Place a container with a capacity of at least 5 litres under the dispensing taps.
8. Dispense at least 3/4 litre of ambient still water, and at least 3/4 litre of chilled water.
9. Position the thermostat switch to number 7, and wait for 2 – 3 minutes.
10.Position the 5 litre container under the sparkling water tap and dispense until only gas comes out.
11.Replace the upper plastic cover and wait for 90 – 120 minutes before dispensing water again so ice may form in the tank.
12.Once started the device must be left operating permanently. If the power supply is interrupted for more than 2 – 3 hours it could cause faults within the ice tank and consequently freeze the water coil. NOTE: If a similar anomaly occurs follow ice bank
defrosting procedure (see Ice Tank Defrosting & Emptying – 60-Litre).

1-60-Litre-Initial-Cold-Water-Operation

Fig 1

2-60-Litre-Initial-Cold-Water-Operation

Fig 2

3-60-Litre-Initial-Cold-Water-Operation

Turn clockwise to decrease water temperature

20/30-Litre - CO2 Bottle Installation

1-20-30-Litre-CO2-Bottle-Installation

Unpack CO2 Regulator and fit elbow fitting to spigot outlet.

2-20-30-Litre-CO2-Bottle-Installation

Attach the regulator to the disposable CO2 bottle, ensuring the small pressure relief vent in the stem is facing away from you or anyone else. Ensure the regulator is closed. Hand tighten securely.

3-20-30-Litre-CO2-Bottle-Installation

Connect the assembled CO2 bottle and regulator to the CO2 inlet on the back (20L) or side (30L) panel using a ¼” pipe.

4-20-30-Litre-CO2-Bottle-Installation

Stand the cylinder in a suitable place.

5-20-30-Litre-CO2-Bottle-Installation

On the 20Litre variant: Do not open the regulator valve until the carbonated switch has been turned on.

6-20-30-Litre-CO2-Bottle-Installation

After completing the water installation, turn on the soda power switch and the pump will run. Allow the carbonation tank to fill. (The carbonation pump will run for between 15 seconds – 2 minutes).). We recommend
between 3.5 – 5 bar (max). Do not exceed 5 bar pressure.

7-20-30-Litre-CO2-Bottle-Installation

Flush through approximately 10 litres of water using the sparkling button. Depending on the inlet water pressure, on the 20Litre model you may have to pause approx. every 500ml to allow the carbonation tank to refill. Check and adjust the CO2 pressure accordingly.

8-20-30-Litre-CO2-Bottle-Installation

It will be necessary to leave the machine for up to 1 hour for sparkling water to develop, by absorbing the CO2.

30/60-Litre - Refillable CO2 Bottle Installation

NOTE:

  • Before connecting the CO2 bottle ensure the gas being used is food certified.
  • Do not lay the CO2 bottle on its side whilst attaching the pressure reducer, make sure it is always in an upright position when carrying out this task.
  • Always ensure the reducer’s working pressure is higher than the cylinders max pressure.
  • Do not place hands or any other part of the body near the gas as this may cause freeze burns.
  • A small amount of gas leakage during set up/replacement is normal.
  1. Connect the assembled CO2 bottle and regulator to the CO2 inlet on the rear panel (60L) using a 6mm pipe or side panel (30L) using a ¼” pipe (see Fig1)
  2. In instances where a refillable CO2 bottle is being used screw the pressure reducer on to the gas bottle with a spanner (28mm). If however a singleuse gas bottle is in operation, screw the reducer on to the bottle by hand.
  3. If using a refillable gas bottle open it by turning the upper hand grip counterclockwise (item1- fig 2).
  4. Ensure the CO2 bottle is securely connected to the dispenser using the 1/4” plastic tube.
  5. Insert one end of the tube into the quick fit coupling at the rear or side of the machine, and the other connected to the reducer of the gas bottle.
  6. Open the gas bottle by turning the upper hand grip counter-clockwise (item1- fig 2).
  7. Turn the black handle of the pressure reducer clockwise (turning towards the + sign) (item 2- fig 2).
  8. Check that any connection points are free of leaks using soapy water.

Adjusting Sparkling Water
By adjusting the pressure reducer it is possible to increase or decrease the amount the amount of CO2 present in the water; the optimal recommended values range from 2 – 5 bar. A higher pressure will increase the amount of carbonation in the water, with a lower pressure producing ‘slightly sparkling’ water. CO2 pressure must be set at +0.5Bar> incoming water pressure.

Replacing a Refillable CO2 Tank

  1. Detach the CO2 bottle from any supporting chains or belts.
  2. Close the valve at the top of the bottle by turning it clockwise until completely locked (item1- fig 2).
  3. Close the pressure reducer by turning the knob anticlockwise (item2- fig 2).
  4. Remove the CO2 pipe from the pressure reducer, and detach the other end from the dispenser.
  5. Screw the adapter (optional) for the external CO2 bottle to the new pressure reducer and tighten it firmly.
  6. Connect one end of the new CO2 pipe to the pressure reducer and the other to the appropriate connection point on the dispenser (see 30/60 Litre Major Components).
  7. Screw the ring nut of the adapter assembled on the pressure reducer to the CO2 bottle.
  8. Open the valve at the top of the new CO2 bottle.
  9. Reattach any chains or belts removed from the bottle and return it to its normal position.
  10. Check for leaks using soapy water.
1-30-60-Litre-Refillable-CO2-Bottle-Installation

Fig 1

2-30-60-Litre-Refillable-CO2-Bottle-Installation

Fig 2

Maintenance & Cleaning

Sanitisation Guide

NOTE: All maintenance operations must be carried out with the dispenser switched off. This operation must only be carried out by trained staff. Every 6 months a sanitisation procedure is recommended as follows:

1-Sanitisation-Guide

Turn off incoming mains water.

2-Sanitisation-Guide

Briefly press cold/ambient dispense button to release internal water pressure from the machine.

3-Sanitisation-Guide

Remove the existing filter.

4-Sanitisation-Guide

Use Bioguard Hand Gel and put on protective gloves.

5-Sanitisation-Guide

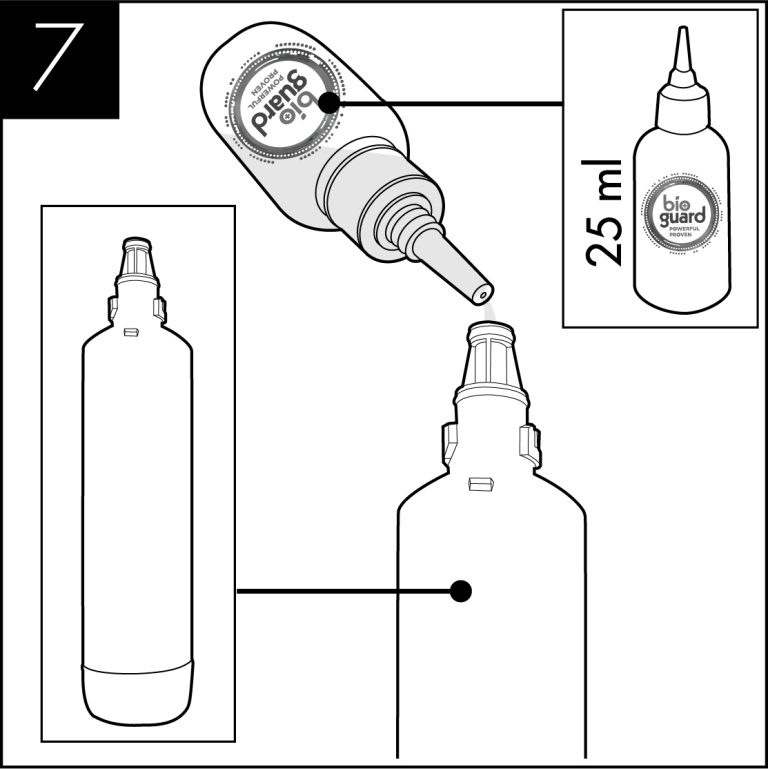

Add 25 ml of Bioguard Internal Sanitisation fluid to a clean and empty service filter cartridge.

6-Sanitisation-Guide

Connect to filter head.

7-Sanitisation-Guide

Turn on incoming water, allow service cartridge/doser to fill.

8-Sanitisation-Guide

Dispense water using the cold button until the water appears pink. Briefly press the ambient button too.

9-Sanitisation-Guide

Leave the solution inside machine for sanitisation to take effect (minimum 5 minutes) while thoroughly cleaning the machine externally.

10-Sanitisation-Guide

For this we recommend the use of Bioguard Foam Descaler & Sanitiser Spray.

11-Sanitisation-Guide

Pay particular attention to the dispense faucet and the push button controls. For this use Bioguard External Sanitiser & Clear Spray and Sanitising Wipes.

12-Sanitisation-Guide

Attend to any cosmetic marks with Bioguard Rejuvenator & Protector as needed.

13-Sanitisation-Guide

Remember to include the drip tray. If a Waste Overflow
System is fitted, empty this and flush through with a small amount of sanitisation fluid if needed.

14-Sanitisation-Guide

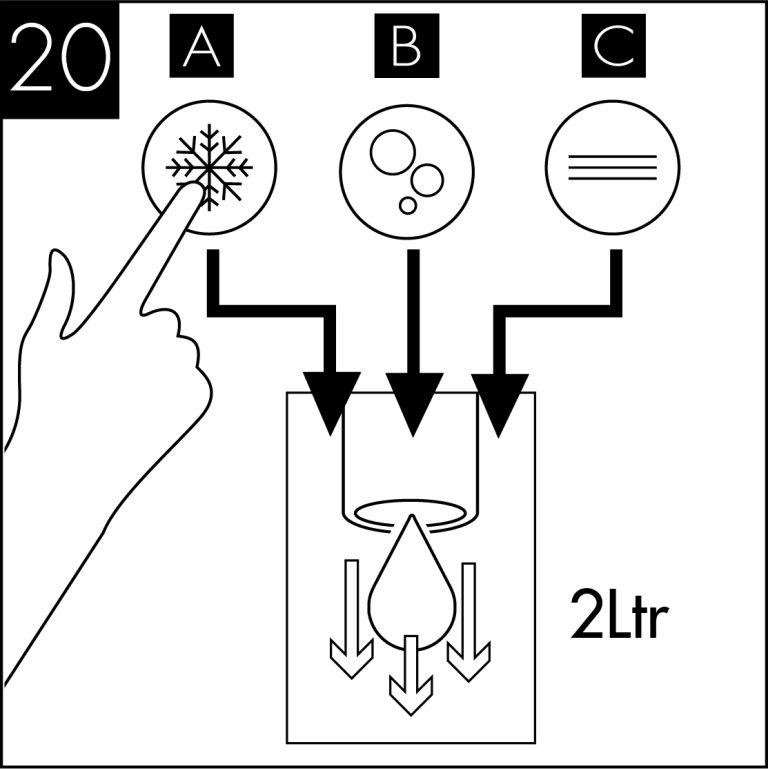

When the external cleaning (minimum 5 minutes) is completed, flush the machine using the cold button with clean water until the dispense water runs clear. Repeat
briefly with the ambient button.

15-Sanitisation-Guide

Turn off water and remove the service filter. Retain service filter for reuse.

16-Sanitisation-Guide

Fit new filter. Turn on incoming water supply and reconnect the power.

17-Sanitisation-Guide

Pre-flush the new filter to waste using the ambient button until the water appears clear and is free of air. Flush through a small amount of water to check all functions.

Warning

Please note that this sanitisation fluid contains an active caustic/alkaline agent.

Warning

Avoid skin contact and wear protective gloves when handling sanitisation fluids.

Warning

Always use responsibly and with care remembering that due to its alkaline nature unnecessary concentrated/prolonged contact with any materials, including metals, can cause damage. Always rinse all contact surfaces after use with clean water.

Warning

In the event of any skin contact, flush immediately with clean, cold water.

20-Litre - Draining the Direct Chill Tank

1-20-Litre-Draining-the-Direct-Chill-Tank

Please make sure the machine is completely disconnected from electricity before carrying out any maintenance work.

2-20-Litre-Draining-the-Direct-Chill-Tank

Turn off the water supply.

3-20-Litre-Draining-the-Direct-Chill-Tank

To drain the Direct Chill tank, remove the cap on the drain port at the back of the machine. We recommend it is refitted immediately upon draining being completed.

20-Litre - Emptying the CO2 Tank

1-20-Litre-Emptying-the-CO2-Tank

Turn off the water supply.

2-20-Litre-Emptying-the-CO2-Tank

Switch off the Carbonation System switch on the back of
the unit.

3-20-Litre-Emptying-the-CO2-Tank

Press and hold the Sparkling water dispense button until all the water is expelled and only CO2 gas is being released.

4-20-Litre-Emptying-the-CO2-Tank

The tank is empty of sparking water when only CO2 is being released.

5-20-Litre-Emptying-the-CO2-Tank

Ensure to release the Sparkling water button and take care to avoid releasing excess amounts of CO2 gas as this may damage the tank.

30-Litre - Emptying the CO2 Tank

NOTE: Chilled & Ambient models do not drain. Direct Chill water is situated in a factory sealed tank.

1-30-Litre-Emptying-the-CO2-Tank

Turn off the water supply.

2-30-Litre-Emptying-the-CO2-Tank

Press and hold the Sparkling water dispense button until all the water is expelled and only CO2 gas is being released.

3-30-Litre-Emptying-the-CO2-Tank

The tank is empty of sparking water when only CO2 is being released.

4-30-Litre-Emptying-the-CO2-Tank

Ensure to release the Sparkling water button and take care to avoid releasing excess amounts of CO2 gas as this may damage the tank.

60-Litre - Draining the Direct Chill Tank

1-60-Litre-Draining-the-Direct-Chill-Tank

Please make sure the machine is completely disconnected from electricity before carrying out any maintenance work.

2-60-Litre-Draining-the-Direct-Chill-Tank

Turn of the water supply.

3-60-Litre-Draining-the-Direct-Chill-Tank

Remove the top cover of the water dispenser.

4-60-Litre-Draining-the-Direct-Chill-Tank

Siphon the water from the cold tank into a suitable container.

60-Litre - Emptying the CO2 Tank

1-60-Litre-Emptying-the-CO2-Tank

Turn off the chilled and sparkling switch at the rear of the machine. Ensure the solenoid box is still turned on.

2-60-Litre-Emptying-the-CO2-Tank

Turn off the water supply.

3-60-Litre-Emptying-the-CO2-Tank

Press and hold the Sparkling water dispense button until all the water is expelled and only CO2 gas is being released.

4-60-Litre-Emptying-the-CO2-Tank

The tank is empty of sparking water when only CO2 is being released.

5-60-Litre-Emptying-the-CO2-Tank

Ensure to release the Sparkling water button and take care to avoid releasing excess amounts of CO2 gas as this may damage the tank.

Ice Tank Defrosting & Emptying - 60-Litre

Should the icebank require defrosting we recommend the following procedure:

1. Keeping the power switch on, turn the thermostat to 0.
2. Make sure water is frequently dispensed from the chilled water tap.
3. Leave the device turned on for at least 12 – 24 hours.
4. Check there is no ice in the tank.
5. Set the thermostat to 6 or 7 and wait at least 90 – 120 minutes before refilling the ice tank.
6. After defrosting shut off the water supply, the CO2 gas, and remove

the power plug.
7. Locate a rubber tube approximately 2m long and a large container.
8. Insert one end of the tube into the bottom of the ice tank and siphon the water through the tube letting it flow in to the container.
9. Ensure the ice tank is completely emptied.

NOTE: Do not remove water from the ice tank by tilting the machine. Water could spill from the tank and cause damage to electrical components within the machine.

Advanced Troubleshooting

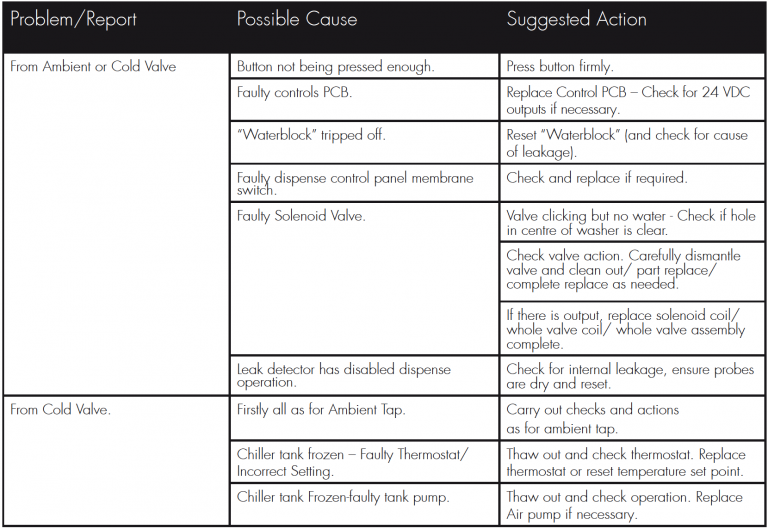

20-Litre - Fault Diagnosis: No Water Dispenses

Problem/ReportPossible CauseSuggested Action
From Ambient or Cold ValveButton not being pressed enough.Press button firmly.
Faulty controls PCB.Replace Control PCB – Check for 24 VDC outputs if necessary.
“Waterblock” tripped off.Reset “Waterblock”
(and check for cause of leakage).
Faulty dispense control panel membrane switch.Check and replace if required.
Faulty Solenoid Valve.Valve clicking but no water - Check if hole in centre of washer is clear.
Check valve action. Carefully dismantle
valve and clean out/ part replace/ complete replace as needed.
If there is output, replace solenoid coil/whole valve coil/ whole valve assembly complete.
Leak detector has disabled dispense operation.Check for internal leakage, ensure
probes are dry and reset.
From Cold ValveFirstly all as for Ambient Tap.Carry out checks and actions as for ambient tap.
Chiller tank frozen – Faulty Thermostat/
Incorrect Setting.
Thaw out and check thermostat. Replace thermostat or reset temperature set point.
Chiller tank Frozen - faulty tank pump Thaw out and check operation. Replace Air pump if neessary.

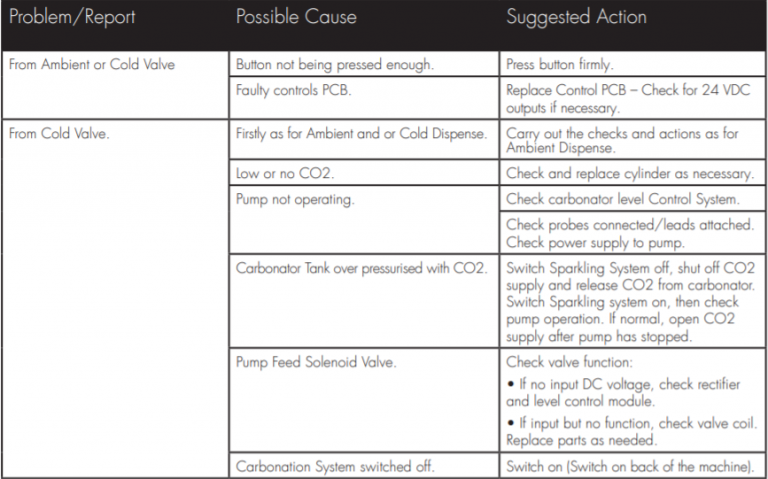

20-Litre - Fault Diagnosis: No Water Dispenses (Continued)

Problem/ReportPossible CauseSuggested Action
From Ambient or Cold ValveButton not being pressed enough.Press button firmly.
Faulty controls PCB.Replace Control PCB – Check for 24 VDC outputs if necessary.
From Cold ValveFirstly all as for Ambient and or Cold Dispense.Carry out checks and actions as for Ambient Dispense.
Low or no CO2.Check and replace cylinder as necessary.
Pump not operating. Check carbonator level Control System.
Check probes connected/leads attached.
Check power supply to pump.
Carbonator Tank over pressurised with CO2.Switch Sparkling System off, shut off CO2 supply and release CO2 from carbonator. Switch Sparkling system on, then check pump operation. If normal, open CO2 supply after pump has stopped.
Pump Feed Solenoid Valve.Check valve function:
• If no input DC voltage, check rectifier and level control module.
• If input but no function, check valve coil. Replace parts as needed.
Carbonation System switched off. Switch on (Switch on back of the machine).

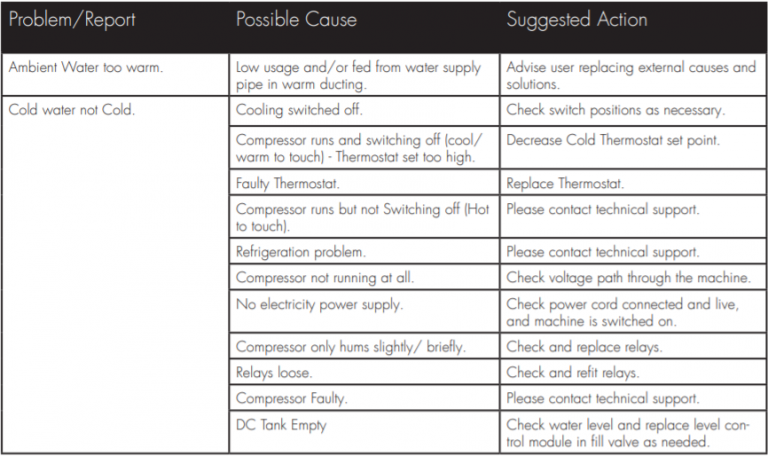

20-Litre - Fault Diagnosis: Water Dispenses but not correct Temperature

Problem/ReportPossible CauseSuggested Action
Ambient Water too WarmLow usage and/or fed from water
supply pipe in warm ducting.
Advise user replacing external
causes and solutions.
Cold Water not ColdCooling switched off.Check switch positions as necessary.
Compressor runs and switching off
(cool/warm to touch) - Thermostat
set too high.
Decrease Cold Thermostat set point.
Faulty Thermostat.Replace Thermostat.
Compressor runs but not switching off. (Hot to touch) Please contact technical support.
Refrigeration problem.Please contact technical support.
Compressor not running at all.Check voltage path through the machine.
No electricity power supply.Check the Power cord is connected
and live, and the machine is switched on.
Compressor only hums slightly/ briefly.Check and replace relays.
Relays loose.Check and refit relays.
Compressor Faulty.Please contact technical support.
DC Tank empty.Check water level and replace level control module in fill valve as needed.

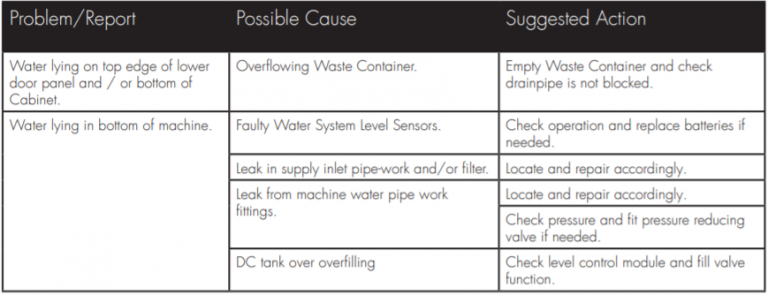

20-Litre - Fault Diagnosis: Water Leaks

Problem/ReportPossible CauseSuggested Action
Water lying on top edge of lower door panel and/or bottom of cabinet.Overflowing Waste Container.Empty Waste Container and check
drainpipe is not blocked.
Water lying in bottom of machineFaulty Water System Level Sensors.Check operation and
replaceb batteries if needed.
Leak in supply inlet pipe work and/or filter.Locate and repair accordingly.
Leak from machine water pipe work fittings.Locate and repair accordingly.
Check pressure and fit pressure reducing valve if needed.
DC tank overfilling.Check level control module and fill valve function.

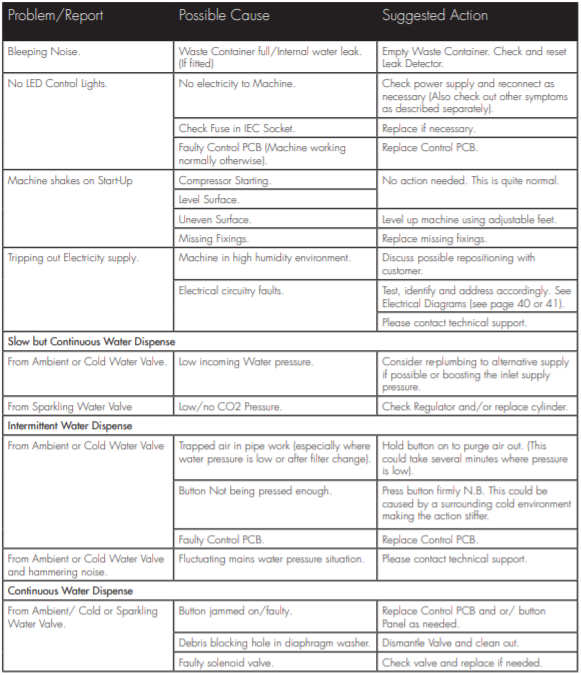

20-Litre - Fault Diagnosis: Miscellaneous

Problem/ReportPossible CauseSuggested Action
Bleeping noiseWaste Container full /Internal water leak. (If fitted)Empty Waste Container. Check and reset Leak Detector.
No LED Control LightsNo electricity to Machine.Check power supply and reconnect as necessary (Also check out other
symptoms as described separately).
Check Fuse in IEC Socket.Replace if necessary.
Faulty Control PCB (Machine working
normally otherwise).
Replace Control PCB.
Machine Shakes on Start-up.Compressor Starting.No action needed. This is quite normal.
Level Surface.
Uneven Surface.Level up machine using adjustable feet.
Missing Fixings.Replace missing fixings.
Tripping out Electricity Supply.Machine in high humidity environment.Discuss possible repositioning with customer.

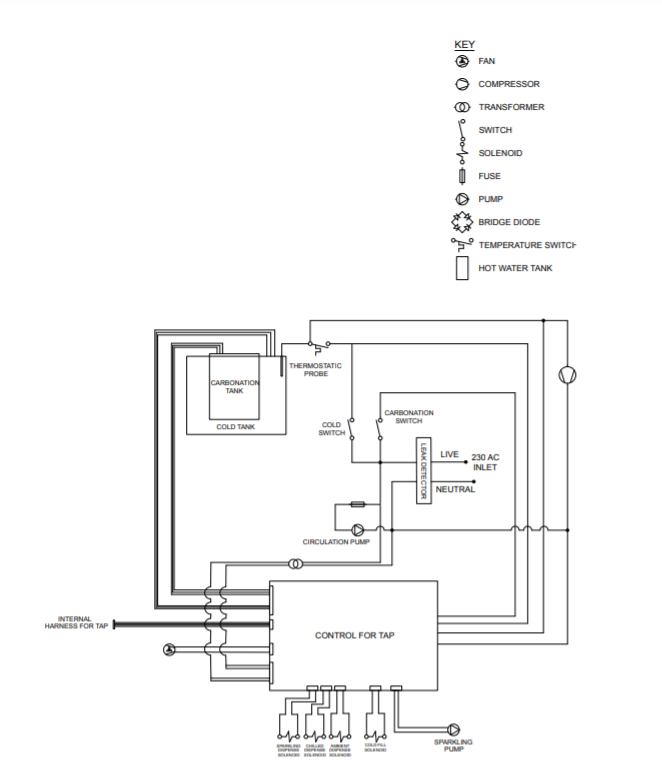

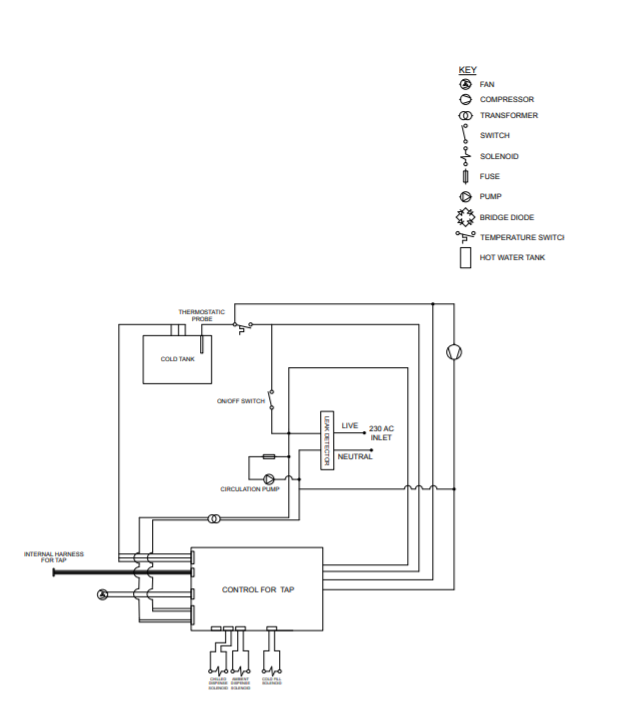

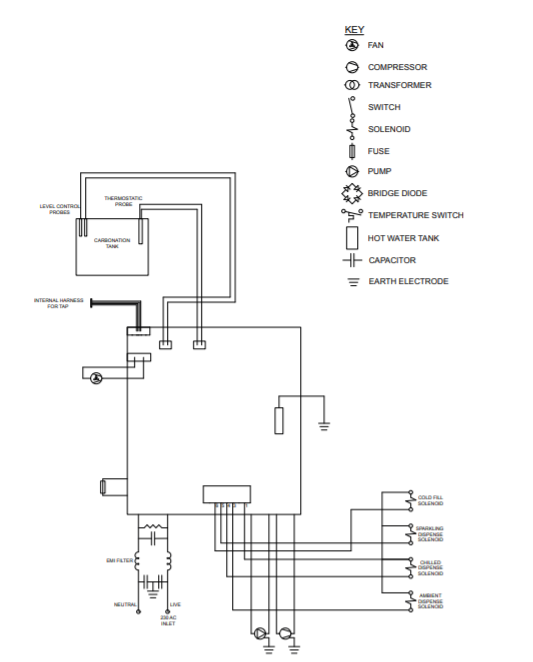

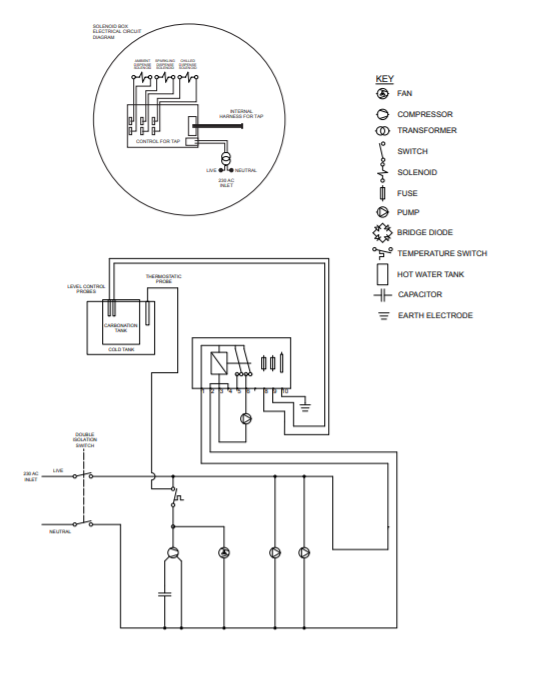

Electrical circuitry faults.Test, identify and address accordingly. See Electrical Diagrams (
Please contact technical support.
Slow but Continuous Water Dispense
From Ambient or Cold Water Valve.Low incoming Water pressure.Consider re-plumbing to alternative supply if possible or boosting the inlet supply pressure.
From
Sparkling Water Valve
Low/no CO2 Pressure. Check regulator and/or replace cylinder.
Intermittent Water Dispense
From Ambient or Cold Water ValveTrapped air in pipe work (especially where water pressure is low or after filter change).Hold button on to purge air out. (This could take several minutes where pressure is low).
Button not being pressed enough.Press button firmly N.B. This could be caused by a surrounding cold
environment making the action stiffer.
Faulty Control PCB.Replace Control PCB.
From Ambient or Cold Water Valve
and hammering noise.
Fluctuating mains water pressure situation.Please contact technical support.
Continuous Water Dispense
From Ambient/ Cold or Sparkling Water Valve.Button jammed on/faulty.Replace Control PCB and or/ button Panel as needed.
Debris blocking hole in diaphragm washer.Dismantle Valve and clean out.
Faulty Solenoid valve.Check valve and replace if needed.

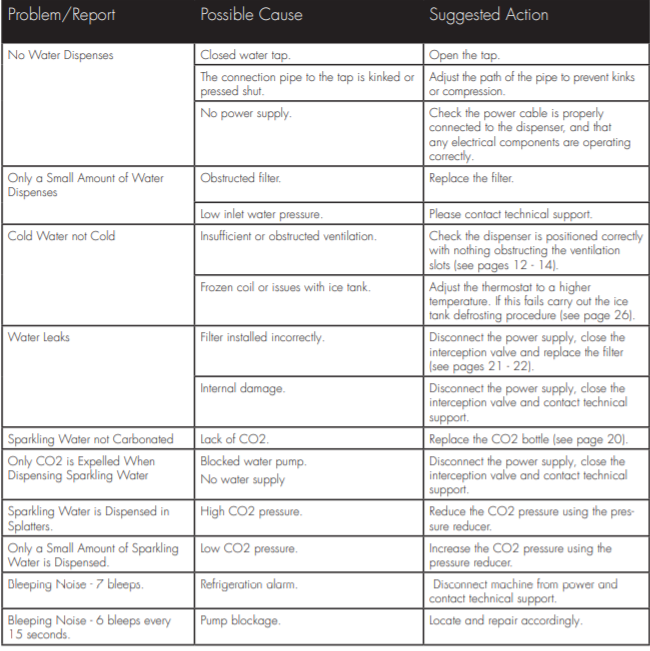

30 & 60-Litre Fault Diagnosis

Problem/ReportPossible CauseSuggested Action
No Water DispensesClosed water tap.Open the tap.
The connection pipe to the tap is kinked or pressed shut.
Adjust the path of the pipe to prevent kinks or compression.
No power supply. Check the power cable is properly
connected to the dispenser, and that
any electrical components are operating correctly.
Only a Small Amount of Water DispensesObstructed filter.Replace the filter.
Low inlet water pressure.Please contact technical support.
Cold Water not ColdInsufficient or obstructed ventilation.Check the dispenser is positioned correctly with nothing obstructing the ventilation slots (See 30/60 Litre Grill Installation)
Frozen coil or issues with ice tank.Adjust the thermostat to a higher temperature. If this fails carry out the ice tank defrosting procedure.
Water LeaksFilter installed incorrectly.Disconnect the power supply, close the interception valve and replace the filter (see Sanitisation Guide).
Internal damage.Disconnect the power supply, close the interception valve and contact technical support.
Sparkling Water not CarbonatedLack of CO2Replace the CO2 bottle (see 30/60 Litre Refillable C02 Bottle Installation).
Only CO2 is Expelled When Dispensing Sparkling WaterBlocked water pump.
No water supply
Disconnect the power supply, close the interception valve and contact technical support.
Sparkling Water is Dispensed in Splatters.High CO2 pressure.Reduce the CO2 pressure using the pressure reducer
Only a Small Amount of Sparkling Water is Dispensed.Low CO2 pressure.Increase the CO2 pressure using the
pressure reducer.
Bleeping Noise - 7 bleeps.Refrigeration alarm.Disconnect machine from power and
contact technical support.
Bleeping Noise - 6 bleeps every 15 seconds.Pump blockage.Locate and repair accordingly.

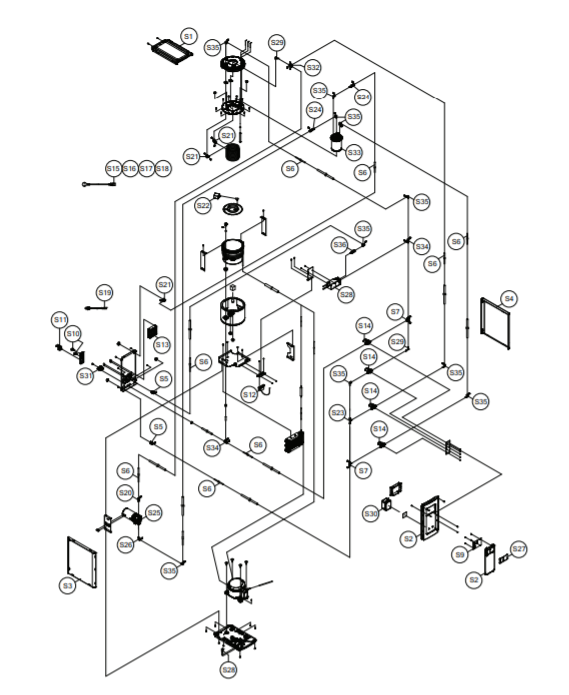

Exploded Diagrams

U1 Tap

Part number:Description:
607131U1 Tap Chilled & Ambient Control Panel MembraneView in store
604001U1 Swan Neck Tap Aerator SetView in store
601254U1 Tap Assembly complete with O-ring, Nut and washer setView in store
603001U1 tap replacement O-ringView in store
603002 U1 tap O-ring, Nut and washer set View in store
607132U1 tap Chilled, Ambient & Sparkling Control Panel MembraneView in store

Chilled & Ambient (20-Litre)

Chilled, Ambient & Sparkling (20-Litre)

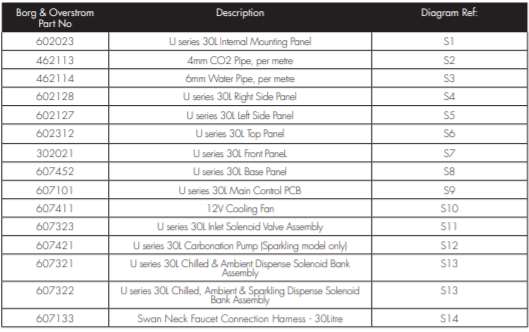

Chilled, Ambient & Sparkling (30-Litre)
